How do I know if my breaker sensor is working?

To check if your breaker sensor is functioning correctly, start with a quick visual inspection:

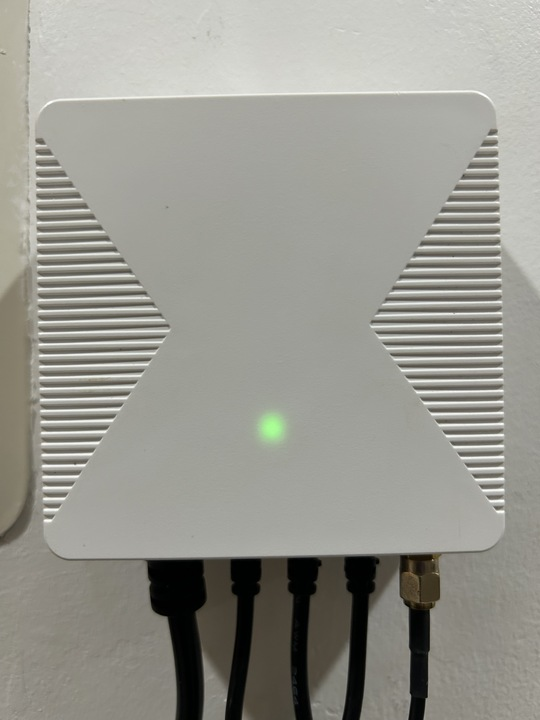

1. Locate the breaker sensor (the white box installed near your breaker panel).
2. Check the LED indicator on the device.

If the sensor is working properly, the LED will display a steady green light.

The LED status indicates the following information about the sensor device:

🟢 Green - Blinking Fast

The device is in setup mode and ready to be connected to Wi-Fi.

🟢 Green - Solid (Always On)

The device is successfully connected to the Lumi system.

🔴 Red - Blinks Rapidly 3 Times

The device has been reset. Network settings and stored data have been cleared.

🔴 Red - Blinking Fast

The device is trying to connect to your Wi-Fi network.

🔴 Red - Blinking Slowly

The device is connected to Wi-Fi, but still trying to connect to the Lumi system.

If your sensor doesn’t show a green solid light, you may want to restart the device or check your Wi-Fi connection. For further help, feel free to contact our support team.
